Specification

OpenTag3D Standard

Current Version: 0.020

Note

In v0.005 of the standard, all of the tag data was memory mapped in order to maximize space. However, many devices did not like the lack of NDEF records, including the Web NFC writer. For improved convenience and support, v0.010 of the standard now utilizes NDEF records. Since the NDEF record headers take up additional space on the tag, the online URL field was moved from Core to Extended. Given that the online URL is for advanced data anyways, this felt like a reasonable compromise. Additionally, in v0.005, all unpopulated fields in the Extended data format would have to be populated with a “-1” in binary (or 0xFFFFFFFFFFFFFFFF). To help preserve free space in v0.010, unpopulated fields can now be left as 0x00.

Hardware Standard

The OpenTag3D standard is designed to work on any NFC tag that is compliant with the ISO/IEC 14443 Type A communication protocol, is compatible with NDEF Type 2, and has at least 144 bytes of writable capacity. These kinds of tags are plentiful and can be read and written with smartphones and PN532 modules, making them low-cost and easy to integrate.

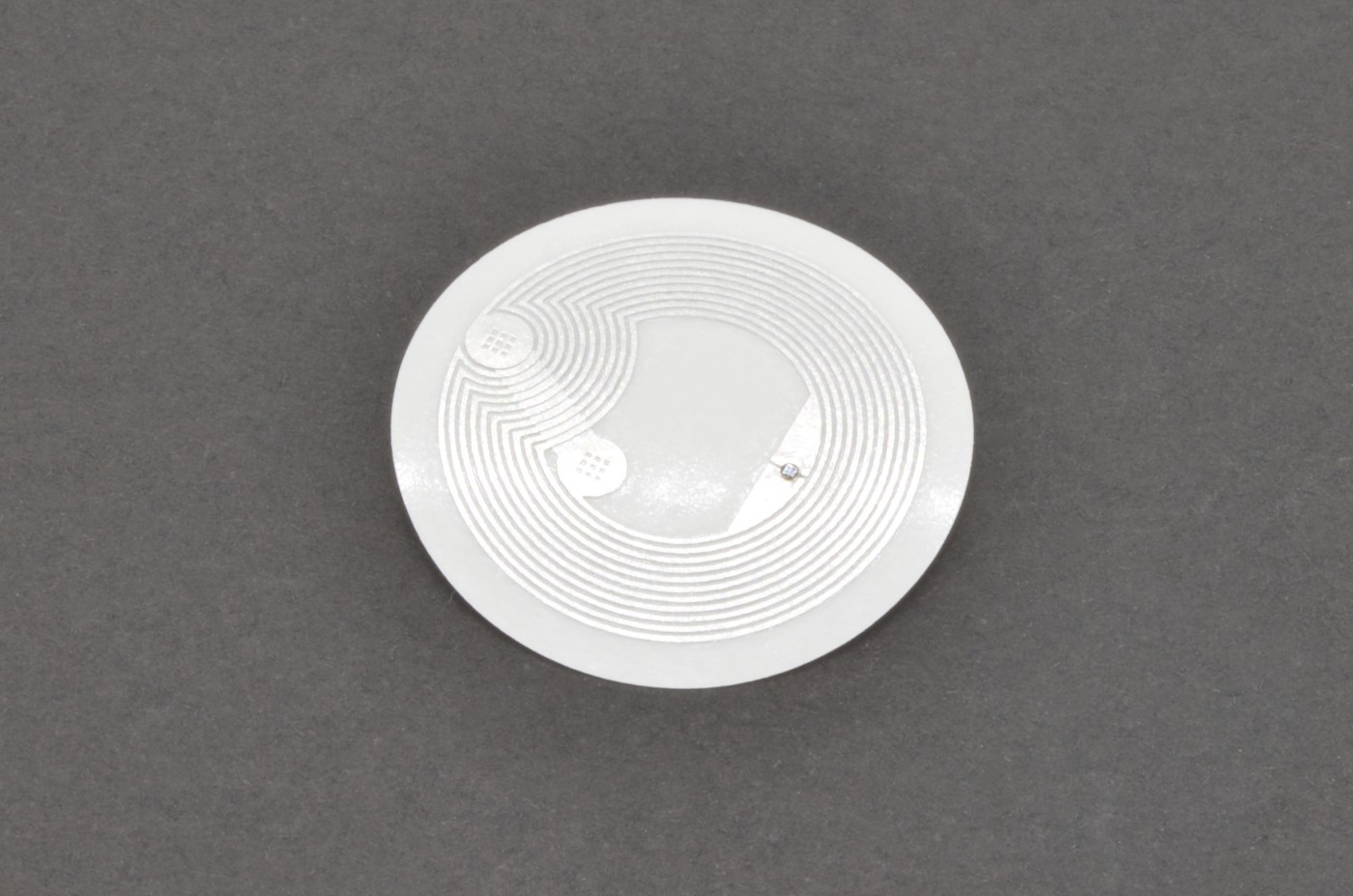

In particular, the standard is tailored towards the NTAG213/215/216 13.56MHz NFC chips. These tags are cheap and common, and have plenty of space to store all of the required and optional information. SLIX2 tags were later added as a compliant option.

Tag Type	Capacity	Usable Capacity	Compatibility
NTAG213	144 bytes	111 bytes	Core
SLIX2	320 bytes	287 bytes	Core + Extended
NTAG215	504 bytes	471 bytes	Core + Extended
NTAG216	888 bytes	835 bytes	Core + Extended

NTAG vs. MIFARE 1K Classic

NFC NTAG213/215/216 was chosen over MIFARE 1K Classic tags, which is what the Bambu Lab AMS uses, for the following reasons:

• Smartphone Support: NTAG213/215/216 can be read from smartphones, while MF1K requires a dedicated reader
• Backwards Compatible: The RFID hardware used for reading MF1K tags typically supports NTAG tags as well
• Non-Encrypted: MF1K uses 25% of its memory to encrypt the data, which is unsuitable for an open source standard

Note

Originally, the NTAG216 was specifically selected as it had more usable memory (888 bytes) than the MF1K (768 bytes). However, it was later determined that the core data required for functionality could be stored within 144 bytes, and extra data could be stored within at little as 320 bytes. So, the NTAG213, SLIX2 and NTAG215 were added as cheaper spec-compliant options.

Mechanical Standard

The NFC tags should be placed on the spools as follows:

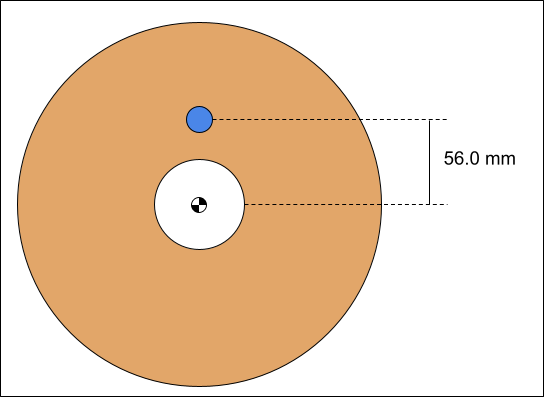

• The center should be 56.0mm away from the center of the spool (see pic)
• The tag should never be more than 4.0mm away from the external surface of the spool
  • For spool sides thicker than 4mm, there must be a cutout to embed the tag, or the tag should be fixed to the outside of the spool
• Two tags should be used, one on each end of the spool, directly across from each other

Data Structure Standard

The data is to be stored as a payload within an NDEF record of MIME type application/opentag3d. The data must remain unencrypted to be compliant with the spec.

NTAG213 tags have 144 bytes of writable memory, which is the minimum requirement for OpenTag3D Core. SLIX2 tags have 320 bytes of writable memory, which is the minimum requirement for OpenTag3D Extended.

All strings are UTF-8 unless specified otherwise. All integers are unsigned, big endian, unless specified otherwise.

Temperatures are stored in Celsius, divided by 5.

Below is list of data that will live on the RFID chip. All REQUIRED data must be populated to be compliant with the spec.

Memory Map - OpenTag3D Core

This is designed to fit within the 144 bytes of writable space on the NTAG213, the smallest and cheapest variant of compatible tags.

Address Range: 0x00 → 0x6F

Name	Type	Unit	Start	Length	Usage	Examples	Description
Tag Version*	int	version	0x00	2	operational	1234	RFID tag data format version, with 3 implied decimal points. Eg 1000 → version 1.000.
Base Material Name*	utf8	string	0x02	5	display	PLA, PETG, PCTFE, TPU	Material name in plain text, excluding any modifiers.
Material Modifiers	utf8	string	0x07	5	display	CF, HF, Pro, Silk, 95A	Material subcategory or modifier in plain text. Long modifiers may need to be abbreviated.
Filament Manufacturer*	utf8	string	0x1B	16	display	Polar Filament	Name of filament manufacturer. Long names should be abbreviated or truncated.
Color Name	utf8	string	0x2B	32	display	White, Blue, Electric Watermelon	Color in plain text.
Color 1 Hex*	rgba	RGBA	0x4B	4	display	255, 166, 77, 255	Primary filament color stored as 4 separate 1-byte integers for red, green, blue and alpha, in the sRGB color space.
Color 2 Hex	rgba	RGBA	0x50	4	display	0, 0, 0, 0	Second filament color, if the filament is multi-color. Set to transparent black if the filament is single color.
Color 3 Hex	rgba	RGBA	0x54	4	display	0, 0, 0, 0	Third filament color, if the filament is multi-color. Set to transparent black if the filament is dual color.
Color 4 Hex	rgba	RGBA	0x58	4	display	0, 0, 0, 0	Fourth filament color, if the filament is multi-color. Set to transparent black if the filament is tri color.
Target Diameter*	int	mm ÷ 0.001	0x5C	2	operational	1750, 2850	Filament diameter (target) in µm (micrometers). Eg 1750 → 1.750mm.
Target Weight*	int	g	0x5E	2	operational	1000, 5000, 750	Filament weight in grams, excluding spool weight. This is the TARGET weight (e.g., 1kg). Actual measured weight is stored in a different field.
Print Temperature*	int	ºC ÷ 5	0x60	1	operational	42	Recommended print temperature in degrees Celsius, divided by 5. For example, 42 = 210°C.
Bed Temperature*	int	ºC ÷ 5	0x61	1	operational	12, 16	Recommended bed temperature in degrees Celsius, divided by 5. For example, 12 = 60°C.
Density*	int	g/cm³ ÷ 0.001	0x62	2	operational	1240, 3900	Filament density in µg (micrograms) per cubic centimeter. Eg 1240 → 1.240g/cm³. (Recommendations: 1.24 for PLA, 1.07 for ABS, 1.27 for PETG)
Transmission Distance (TD)	int	mm ÷ 0.1	0x64	2	operational	118	Opaque thickness in millimeters.

Memory Map - OpenTag3D Extended

This is additional data that not all manufacturers will implement, typically due to technological restrictions. These fields should be populated if available.

This memory address starts just outside the range of NTAG213; an SLIX2 or larger must be used to store this data.

Address Range: 0x70 → 0xBA

Name	Type	Unit	Start	Length	Usage	Examples	Description
Online Data URL	ascii	string	0x70	32	operational	pfil.us?i=8078-RQSR	URL to access online JSON additional parameters. Formatted without https to save space.
Serial Number / Batch ID	utf8		0x90	16	display	1234-ABCD, 2024-01-23-1234	Manufacturer’s identifier for a spool batch or serial number.
Manufacture Date	date	YYYY,MM,DD	0xA0	4	display	2024, 1, 23	Stored as 2 bytes for year, then 1 byte for month and 1 byte for day.
Manufacture Time	time	UTC hh:mm:ss	0xA4	3	display	10, 30, 45	Stored as 1 byte each for hour, minute, and second in 24-hour UTC.
Spool Core Diameter	int	mm	0xA7	1	operational	100, 80	Core diameter in mm (millimeters).
MFI Temp	int	ºC ÷ 5	0xA8	1	operational	210	MFI test temperature, divided by 5. For example, 42 = 210ºC.
MFI Load	int	g ÷ 10	0xA9	1	operational	216	MFI test load grams, divided by 10. For example, 216 = 2.16kg.
MFI Value	int	g/10min ÷ 10	0xAA	1	operational	63	MFI value, divided by 10.
Measured Tolerance	int	µm	0xAB	1	operational	20, 55	Measured tolerance in µm (micrometers).
Empty Spool Weight	int	g	0xAC	2	operational	105	Weight of empty spool in grams.
Measured Filament Weight	int	g	0xAE	2	operational	1002	Weight of filament only.
Measured Filament Length	int	m	0xB0	2	operational	336	Length in meters.
Max Dry Temp	int	ºC ÷ 5	0xB2	1	operational	10, 11	Max safe drying temp, divided by 5.
Dry Time	int	hr	0xB3	1	operational	4, 8, 12	Recommended drying time.
Min Print Temp	int	ºC ÷ 5	0xB4	1	operational	38	Minimum nozzle temp, divided by 5. For example, 38 = 190ºC.
Max Print Temp	int	ºC ÷ 5	0xB5	1	operational	45	Maximum nozzle temp, divided by 5.
Min Bed Temp	int	ºC ÷ 5	0xB6	1	operational	8	Minimum bed temp, divided by 5. For example, 8 = 40ºC.
Max Bed Temp	int	ºC ÷ 5	0xB7	1	operational	12	Maximum bed temp, divided by 5.
Min Volumetric Speed	int	mm³/s	0xB8	1	operational	20	Min speed recommendation.
Max Volumetric Speed	int	mm³/s	0xB9	1	operational	120	Max safe speed.
Target Volumetric Speed	int	mm³/s	0xBA	1	operational	80	Default recommended speed.

Web API Standard

Sometimes a filament manufacturer may want to include supplemental data for advanced users that doesn’t fit or otherwise cannot be stored on the RFID tag itself. One example is a diameter graph, which is too much data to be stored within only 888 bytes of memory. OpenTag3D defines a field for a “web API” URL which can be used to look up this information.

Note

The web API will only be used for advanced supplemental data, or data that requires an internet connection to use anyways, and will NEVER be used for critical information required by printers in order to print the material properly.

The “Online Data URL” field should be populated with the URL that responds with the web API data. The URL must return JSON data when the Accept HTTP header is set to application/json. Implementers are welcome to create a user-friendly UI if the Accept header is set to anything else, but it must return JSON format if the client calls for it.

The URL should respond with JSON formatted like the following:

{
  "opentag_version": "0.020",
  "price": {
    "us": "$15.99",
    "eu": "€14.99",
    "uk": "£16.99",
    "global": "$15.99"
  },
  "product_url": {
    "us": [
      "https://www.amazon.com/dp/*",
      "https://example.com/filament-manufacturer-website"
    ],
    "eu": ["https://example.com"]
  }
}

The opentag_version must be set as the current OpenTag3D version the API has been updated to support.

The price field should be the current prices for the material and color, separated by country or region. Each country or region should be represented by its two-letter ISO 3166-1 code, including any exceptional reservations such as EU for European Union. A global area may be defined as well.

The product_url field should be links to product pages where the user can repurchase the filament, separated by country or region. The representations of countries/regions will be identical to that of the price field. For each country/region, a list of URLs may be specified in order to provide multiple places the user can buy new filament. The order of URLs may be specified however the filament maker desires. (Implementers should honor the filament maker’s ordering.)

Reader Implementation Guidelines

While every implementation for reading OpenTag3D RFID tags will be different, this specification aims to set a few requirements to ensure that functionality is consistent across printers and other hardware – we’ll call these the “reader” for continuity.

When attempting to read an RFID tag, the reader should check for an NDEF record of the type application/opentag3d. This record will include all of the tag data. It may ignore any other NDEF records. If there is no application/opentag3d record, it is not an OpenTag3D tag.

The reader should then check the tag version. If the tag version is a newer minor version than the reader expects, display a warning to the user and attempt to parse anyways. If the tag version is a newer major version, the reader should display an error to the user and not attempt to parse the data.

Branding Guidelines

Adding the OpenTag3D logo or any OpenTag3D branding is entirely optional, but is recommended to show that your filament or hardware uses or supports the OpenTag3D specification. With that said, if you decide to include OpenTag3D branding, there are a few guidelines on how to do so.

When including OpenTag3D branding, you may:

• Include either variation of logo in printed or digital media
• Change the logo color as desired (although black or white is recommended)
• Specify the name in plain text in place of the logo
• Slightly modify the logo for thematic effect (such as adding drips to fit branding)

You may NOT:

• Crop, scale, warp, flip or otherwise distort the logo
• Heavily modify the logo, such as changing the font used
• Use the logo or OpenTag3D name to imply endorsement of your product

OpenTag3D has both full-size and small logos available:

|

Previous Considerations

These are topics that were heavily discussed during the development of OpenTag3D. Below is a quick summary of each topic, and why we decided to settle on the standards we defined.

• NTAG vs MIFARE 1K Classic
  • NTAG213/215/216 and SLIX2 tags are easy to source
  • NTAG216 has slightly more usable memory than MIFARE tags
    • This was later determined to not be important, as the core data could be fit within significantly less capacity
  • MIFARE 1K Classic uses about 25% of memory to encrypt data, preventing read/write operations, which is not applicable for OpenTag3D because of the open-source nature
  • The hardware used for reading MIFARE 1K Classic tags is typically compatible with NTAG/SLIX2 tags, meaning existing RFID printer hardware would not need replacement
    • In contrast, smartphones can’t typically read MIFARE 1K Classic tags
• JSON vs Memory Map
  • Formats such as JSON (human-readable text) take up considerably more memory than memory mapped
    • For example, defining something like Printing Temperature would be PrintTemp:225 which is 13 bytes, instead of storing a memory mapped 2-byte number. Tokens could be reduced, but that also defeats the purpose of using JSON in the first place, which is often for readability
  • NTAG216 tags only have 888 bytes of usable memory, and NTAG213 tags only have 144 bytes, which would be eaten up quickly
    • With memory mapping, the core data was able to easily fit in 144 bytes
• Lookup Tables
  • OpenTag3D does NOT use lookup tables, which would be too difficult to maintain due to the decentralized nature of this standard
  • Lookup tables can quickly become outdated, which would require regular updates to tag readers to make sure they’ve downloaded the most recent table
  • Storing lookup tables consumes more memory on the device that reads tags
  • On-demand lookup (via the internet) would require someone to host a database
    • Hosting this data would have costs associated with it, and would also put the control of the entire OpenTag3D format in the hands of a single person/company
  • Rather than representing data as a number (such as “company #123 = Example Company”), the plain-text company name should be used instead
